Rexroth A7V Variable Displacement Pump Komatsu Excavators

 

Rexroth A7V Variable Displacement Pump Komatsu Excavators

Payment Type: L/C,T/T,D/P

Transportation: Ocean,Land,Air,Express

$1000-9999 /Piece/Pieces

Contact Now

Chat Now

Product Attributes



Product Attributes

Brand: HN

Warranty Period: 1.5 Years, Other

Out-of-warranty Service: Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Nigeria, Indonesia, Romania, India, Brazil, Morocco, United Kingdom, Thailand

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Sri Lanka, France, Romania, Other, Thailand, Australia

Service System: Online Support

Displacement: 210cm³

Types Of High Heels: Piston Pump

Model NO.: Rexroth A7V series

Series: Rexroth A7V Series

Place Of Original: China Mainland

Color: According to The Customer Demand

Delivery Time: According to The Order Quantity

Transport Package: Standard Export Packing

Specification: Iso9001

Trademark: HN

Origin: China

HS Code: 8412291000

Production Capacity: 6200sets/Month

Structure: Single Cylinder

Power: Hydraulic

Application: Machinery Manufacturing

Performance: No Leak

Standard: Standard

Brand: HN

Packaging & Delivery
Selling Units	:	Piece/Pieces
Package Type	:	wooden cases
Picture Example	:

Product Description



Basic Info.

Model NO.

Rexroth A7V series

Series

Rexroth A7V Series

Place of Original

China Mainland

Color

According to The Customer Demand

Delivery Time

According to The Order Quantity

Transport Package

Standard Export Packing

Specification

ISO9001

Trademark

Origin

China

HS Code

8412291000

Production Capacity

6200sets/Month

Product Description

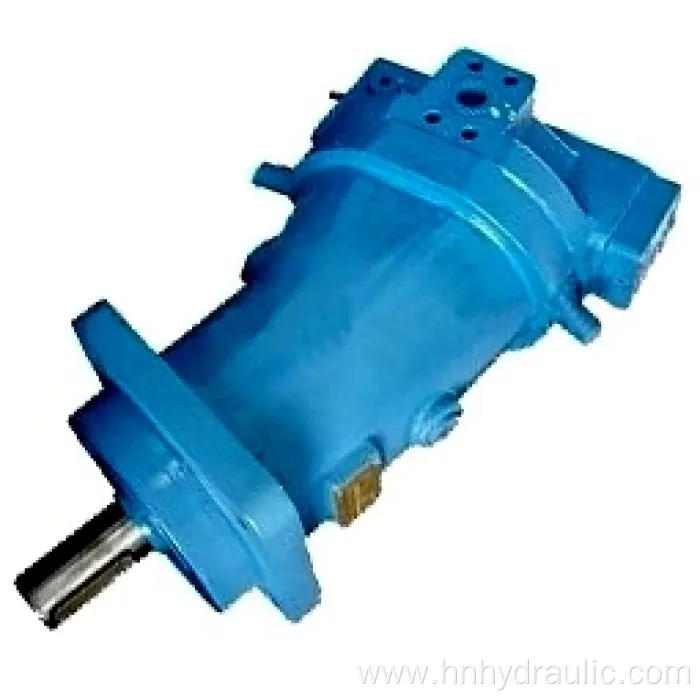

A7v variable displacement pump

Variable displacement pump, axial piston, bent axis design, for hydrostatic trans missions in open circuits.

The flow is proportional to the drive speed and the displacement and is steplessly variable at constant drive speed.

Comprehensive programme of control devices for every control and regulation function.

Rexroth A7V Variable Displacement Pump for Komatsu Excavators

Rexroth A7V Variable Displacement Pump for Komatsu Excavators

Operation of both mineral, and fire-resistant fluids.

Size		20	28	40	55	58	80	78	107	117	160	250	355	500
Rotation Direction(R Clockwise, L Anti-clock wise)		L R	L R	L R	L R	L R	L R	L R	L R	L R	L R	L R	L R	L R
Type of control		* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *
	DR Constant pressure Control	* *	* *	* *	* *	* *	* *	*
	EL Electric Control	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	*
	HD Hydraulic pressure Control	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	*
	MA Manual pressure	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *	* *
Disp.	Vgmax(ml/r)	20.5	28.1	40.1	54.8	58.5	80	78	107	117	160	250	355	500
Disp.	Vgmin(ml/r)	0	8.1	0	15.8	0	23.1	0	30.8	0	46.1	0	0	0
Max speed 3)	At 0.09MPa 1) nmax 0.09 (r/min)	3800	2800	3200	2360	2850	2120	2540	1900	2240	1650	1400	1250	1120
	At 0.10MPa 1) nmax 0.10(r/min)	4100	3000	3400	2500	3000	2240	2700	2000	2360	1750	1500	1320	1200
	At 0.15MPa 1) nmax 0.15(r/min)	4750	3600	3750	3000	3350	2750	3000	2450	2650	2100	1850	1650	1500
Max Flow 2)	At nmax0.09 Qmax 0.09(l/min)	76	76	124	125	162	165	192	197	254	256	340	430	543
	At nmax0.10 Qmax 0.10(l/min)	82	82	132	133	170	174	204	208	268	272	364	455	582
	At nmax0.15 Qmax 0.15(l/min)	94	98	146	160	191	213	227	254	301	326	449	568	728
Max Power P=35MPa	At Qmax 0.09 Pmax 0.09(kW)	46	46	75	75	97	99	115	119	153	154	204	259	327
	At Qmax 0.10 Pmax 0.10(kW)	49	49	79	80	102	105	122	125	161	164	219	274	350
	At Qmax 0.15 Pmax 0.15(kW)	57	59	89	96	115	128	137	153	181	196	270	342	438
FlowQ 2)	At nE =1450r/min(l/min)	28.2	39.5	56.4	77.1	82.3	112.5	110	150.5	164.6	225	351.6	499	703
Power PP=35MPa	At nE =1450r/min(kW)	17	24	34	46	50	68	66	91	99	135	211	300	423
Torque MP=10MPa	At Vgmax(N. m/10MPa)	32.6	44.7	63.8	87.1	93	127.2	124	170.1	186	254.4	397.5	564.5	795
Torque MP=10MPa	At Vgmin(N. m/10MPa)	-	12.9	-	25.1	-	36.7	-	49	-	73.3	-	-	-
Max Torque Mmax P=35MPa	At Vgmax (N. m)	114	156	233	305	326	445	434	595	651	890	1391	1976	2783
Max Torque Mmax P=35MPa	At Vgmin(N. m)	-	45	-	88	-	129	-	171	-	275	-	-	-
Weight	(kg)	19	19	28	28	44	44	53	53	76	76	105	165	245
